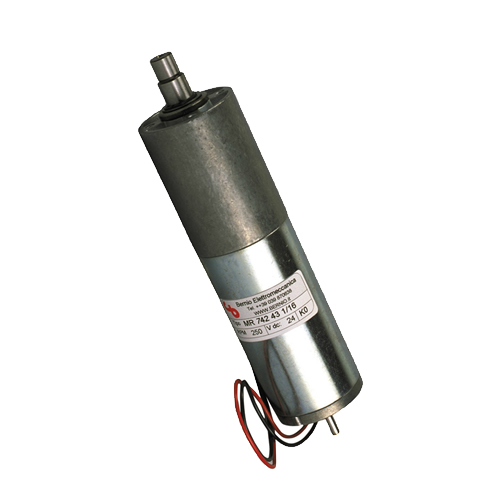

MR742 43

作者: 發布時間:2015-07-29 11:36:20 閱讀數:3232
產品介紹 / Product introduction

12/24 Vdc 30 W ? 43

型號

減速比
空載
轉速
min-1
S1轉速
min-1
S1 扭矩
Nm
S2轉速
min-1
S2 扭矩
Nm
最大扭矩
Nm
最大電流
A
742 43 1/16
16
230
206
0,6
164
1,12
4,2
5.5
742 43 1/24
24
150
135
0,91
117
1,65
6,3
5.5
742 43 1/36
36
98
82
1,4
73
2,25
8,8
5.5

The standard motor 742 30 W output W 3700 Rpm loadness, 24 Vdc.
Drivingshaft supported by self lubrificating bushings. Outlet shaft is supported by an iron self-lubrificating bushing.
The motor is plated for corrosion strength. The motor has an electrical suppressor system for the CE standard.
Connecting 2 wire 0,75 x 250 mm.
* The rotation speed can change of ± 10%.
The S1 load test was made using a 1,2 A corrent in the air with an increase of temperature of 70° C.
The S2 load test was made using a 1,6 A corrent in the air with a timing 5` ON 5` OFF with an increase of temperature
of 80° C max
The starting corrent is 5,5 A and cannot be maintained for more than 2".
Max forces which may on the outlet shaft: Axial 10 kg, Radial 4 kg on the extremity of outlet shaft.
It is possible to apply an encoder.

相關下載 / Download
產品手冊: 點擊下載
